| Place of Origin: | Shenzhen, China |
| Brand Name: | Mega |
| Certification: | CCC, CE, ROHS |
| Model Number: | P3mm |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Flight case, export wooden case |
| Delivery Time: | 10-20 working days |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 1000sqm/month |
| Pixel Configuration: | 1R1G1B | Package Mode: | SMD2121 |
|---|---|---|---|
| Module Resolution: | 64dots(W)*32dots(H) | Life Span: | 100000 Hours |
| Screen Dimension: | Customized | Display Function: | Video |
| Usage: | Indoor | Average Power Consumption: | 380-500w |

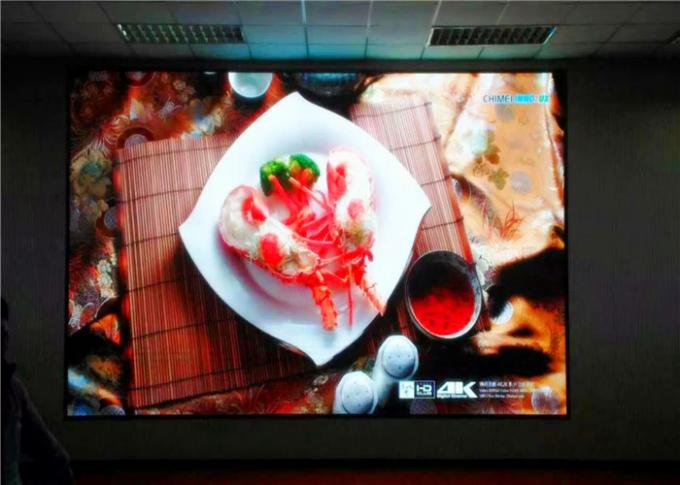

High Brightness P3 SMD Stage Background Led Display Concert Led Screen 1R1G1B
LED rental display as a custom die-cast aluminum case design, light, thin, quick installation of its most important features. Cabinet light, quick installation, removal and transportation, suitable for large-scale fixed installation and rental application site. And synchronous control processing system accepts DVI, VGA, HDMI, S- video, composite, YUV and other video input signal, free play video, graphics and other programs, in real time, synchronous, clear information dissemination play various information. Vivid colors, strong adaptability.
This screen do not need put cabinet one by one together and then consist of one big screen, just use it directly, which save your time and labour fee.
This intergrated big screen protect by a big tempered glass, it can be applicated in bar or night club.
High resolution, high definition, dseamless display, excellent quality.
We have an excellent capability of self-manufacture and all the manufacturing equipments are capable of self-manufacture.
For more information, please check the following technical parameter table.
Specifications:
| P3 indoor rental stage LED screens video wall die casting cabinet light weight techincal parameters | ||
| Unit Module | Item | parameter |
| Model | P3 - 16S | |
| Module size | 192mm*96mm | |
| Pixel Pitch | 3mm | |
| Pixel Density | 111111dots/m2 | |
| Pixel Configuration | 1R1G1B | |
| Package mode | SMD2121 | |
| Module Resolution | 64dots(W)*32dots(H) | |
| Max power consumption | 18w | |
| Module Thickness | 14.75mm(without magnet) 26.63mm (with magnet ) | |
| Module Weight | 0.16kg | |
| Driving Method | Constant Current Driving | |
| Scan Method | 1/16scan | |
| Interface Way | HUB75-A | |
| Brightness | ≥1500cd/m2 | |
| Unit Module | dimension | 576mmx576mm |
| Quantity of Module | 18 | |
| Thermal discharge | fan 2pcs | |
| Power supply Mode | 5V/40A* 3pcs | |
| Pixel per cabinet | 192mm*192mm | |
| Thickness | 85mm | |
| Optimal Viewing Distance | 3M-20M | |
| Optimal Viewing angle | 160°(W)120°(H) | |
| Enviroment Temperature |
Storage :-35℃-+85℃ work :-20℃-+50℃ |
|
| Power | Relative Humidity | 10%-95% |
| Operating Voltage | AC220V±10% | |
| Average power consumption | 180W/H | |
| Max power Consumption | ≤360W/m2 | |
| Current | ≤20mA (Single LED ) | |
| Control system | CPU | Pentium4 or above P4 or above |
| Operate system | WIN98/2000/NT/XP | |
| Control Mode | Synchronization with PC | |
| Main technical parameter | Driving Device | IC Constant current driving |
| Refresh Rate | ≥400HZ | |
| Gray/Color | RGB each 256 grade, can display 16.7M clolor | |
| MTBF | ≥9000hours | |
| Power Switch | Automatic Switch | |
| Display Mode | 800*600/1024*768 | |
