Remark:
1. LED Module Including the Data & Power Cables.
2. Epistar LEDs, 5 Years Warranty, Ship in 24 hours,Free Online Support.
3. LED Module Can Work With Linsn,Novastar,Colorlight,Xixun LED Conrol Card Etc.
|
Model |
P4-I-32X32 |
|||||||
|
1.LED |
||||||||
 |
||||||||
|
Color |
Package |
Intensity |
View Angle |
Wavelength |
Test Cond. |
|||
|
Red |
SMD 2121 |
150mcd |
140/140 |
620nm |
25℃,20mA |
|||
|
Green |
SMD 2121 |
400mcd |
140/140 |
520nm |
25℃,20mA |
|||
|
Blue |
SMD 2121 |
100mcd |
140/140 |
470nm |
25℃,20mA |
|||
|
2.LED Module
Module Front View

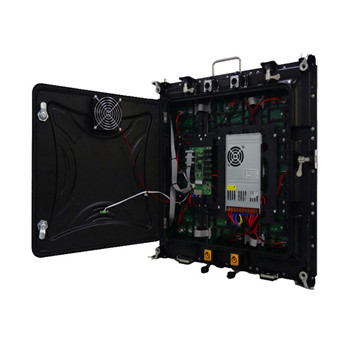

Module Back View |
|
|||||||
|
Resolution |
32(H)×32(V) |
|
||||||
|
Pitch |
4mm |
|
||||||
|
Density |
62500 pixels/㎡ |
|
||||||
|
LED Arrangement |
SMD2121 |
|
||||||
|
Driver Mode |
Dynamic 1/16 Duty constant current |
|
||||||
|
Size |
128mm×128mm |
|
||||||
|
Mask |
Pure Black mask-high contrast screen |
|
||||||
|
3.Electricity Parameter |
|
|||||||
|
Optical Ratings |
|
|||||||
|
Brightness |
≥1000cd/㎡ |
|
||||||
|
View Angle |
140 degree ( horizontal) 140degree(vertical) |
|
||||||
|
View Distance |
4m-40m |
|
||||||
|
Gray Scale |
8bits input, correction with 16bits |
|
||||||
|
Display Color |
16.7M |
|
||||||
|
Brightness Adjustment |
100 levels |
|
||||||
|
Power Supply |
|
|||||||
|
Operation Power |
AC100-240V 50-60HZ Switch-able |
|
||||||
|
Maxim Power Consumption |
750 W/m2 |
|
||||||
|
Average Power Consumption |
430 W/m2 |
|
||||||
|
Control System |
|
|||||||
|
Correction Scale Level |
16bits |
|
||||||
|
Frame Update Frequency |
60Hz |
|
||||||
|
Screen Refresh Frequency |
480Hz |
|
||||||
|
Gamma Correction |
-5.0—5.0 |
|
||||||
|
Support Input |
Composite Video, S-Video, DVI, HDMI., SDI, HD_SDI |
|||||||
|
Control Distance |
Ethernet cable 100m, optical fiber 5km |
|
||||||
|
Support VGA Mode |
800×600,1024×768,1280×1024,1600×1200 |
|
||||||
|
Color Temperature |
5000-9300 adjustable |
|
||||||
|
Brightness Correction |
dot by dot, module by module, cabinet by cabinet |
|
||||||
|
Reliability |
|
|||||||
|
Operating Temp. |
-20-60 Celsius degree |
|
||||||
|
Operating Humidity |
10-95% RH |
|
||||||
|
Operating Life |
100,000 hours |
|
||||||
|
MTBF |
5000 hours |
|
||||||
|
Continuous Working Time |
≥48 hours |
|
||||||
|
Protection Level |
IP54 |
|
||||||
|
Out of Control Pixel Rate |
0.01% |
|
||||||
Shipping & Payment Terms:
Delivery time: Deliver in 24 hours after received the payment.
Payment terms: Paypal/Western Union or Wire Transfer 100% before shipment.
Packaging: Strong Cardboard Carton.
Warranty: 5 Years Warranty.
Shipping method: Ship the led display module by DHL, UPS, Fedex and EMS.
Shipping cost: We will check the best shipping cost for you after you tell us the quantity and shipping address.
