High Drafty Led Curtain Wall , IP65 Front Service LED Display For Commercial

Product Details:

Place of Origin:	China
Brand Name:	Mega
Certification:	UL EMC CE ROHS Fcc ISO90001 ETL SGS SAA
Model Number:	P16.66 / P33.33

Payment & Shipping Terms:

Minimum Order Quantity:	1 Piece / 1 Set
Price:	negotiable
Packaging Details:	Carton box / Flight case / Wooden box
Delivery Time:	7-15days
Payment Terms:	L/C, T/T, Western Union, Paypal, Credit Card, MoneyGram, VISA
Supply Ability:	5000 Square/one month

Quick Quotation >

Detailed Product Description

Input Voltage(V):	AC110/220v +-10%	Protection Level:	IP65 Front & Rear
Working Humidty(RH):	10%-90%	Horizon Viewing Angle:	110 °
Storage Temperature(℃):	-10 To 55	Life Span(hours) : 100,000 Maintance Way:	100,000
Maintance Way:	Front & Rear	Consumption:	400 W/㎡

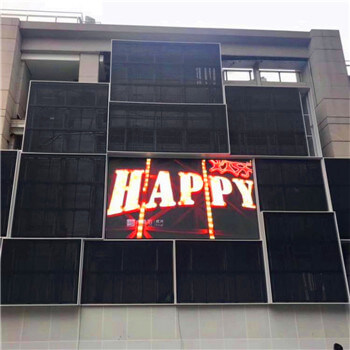

Die-cast waterproof LED Curtain Video Display P16.66 / P33.33 for front service

Product description:

Good waterproof IP65, can used for outdoor environment;
Ultra light & thin;
high drafty: no air conditioning fan, cost savings;
Widely used for commercial led display, stage led display,rental led display;
High brightness, 7500nits for outdoor mesh with good waterproof;
Module design, easy to change modules, and convenient to install and dismantle;
Cabinet size can be customized accordint to the ordered screen size,and with different costs,please contact us for details;
Aluminum cabinet with light weight and lasting,long life span;
low power consumption, low noise created, energy-saving 30%;
Good waterproof and dustproof, IP65, for indoor and outdoor use;

Parameter:

LED curtain specification
Iten name	M1660D	M2350D	M3330D
pixel pitch	16.66	16.66(H)-33.33(W)	33.33
pixel configration	1R1G1B(DIP346)	1R1G1B(DIP346)	1R1G1B(DIP346)
Cabinet configration/pixels	30x60	15x60	15x30
Pixel density/㎡	3600	1800	900
Cabinet dimension/mm	500x1000x55
cabinet material	Die-cast aluminum
Cabinet weight/kg	8.2	6.5	6.5
Transparency rate	0-40%	0-70%	0-70%
Gray level	16
Color lavel/Bit	65536
Refersh rate(Hz)	>1920
Driving mode	Static scan
Brightness(Nits)	7000
Horizon viewing angle(°)	110
Vertical viewing angle(°)	50
Input voltage(V)	AC110/220v +-10%
input frequency(Hz)	60/50
Peak Power consumption(W/㎡)	400
Average power consuption(W/㎡)	120
Storage temperature(℃)	,-10 to 55
Working temperature(℃)	,- 42 to 42
Storage humidty(RH)	10%-90%
Working humidty(RH)	10%-90%
Protection level	IP65 front & rear
Life span(hours)	10,000
Installation way	Fixed
Maintance way	Front & rear
Notes: Specifications are for reference only. Please contact our salesperson for details. All rights are reserved to Led World.

Why choose us :

Service advantage: Better service at same situation, better cooperation at same service;
OEM service;
CE,RoHS,FCC, ISO9001;
We are Professional manufactory of LED Display for more than 7 years in Shenzhen China.We have 9000 square meters of production base, 200 employees, enough for any orders;
Competitive price as stocks and lower marketing expense;
On time delivery + patient after-sales service;
