Advertising Media Outdoor LED Signs Video Wall , Full Color Led Video Board

Product Details:

Place of Origin:	Shenzhen, China
Brand Name:	Mega
Certification:	CCC , CE , RHos
Model Number:	PH10mm

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Flight case or Fumigation-Free Wooden Case
Delivery Time:	15~20 Working days
Payment Terms:	L, T/T, Western Union, MoneyGram
Supply Ability:	2000SQM/Month

Quick Quotation >

Detailed Product Description

Driving IC:	MBI5124	LED Brand:	EPISTAR
Color:	Full Color	Brightness:	8000CD/SQM
Display Function:	Video, Text, Picture	Control System:	Linsn / Nova(sending Card,receiving Cards And Hubs)

Full Color Led Video Board Signs Advertising Media Outdoor LED Signs Video Wall

Main advantages:

1. New mask design makes LED light almost zero reflection, which ensures the screen displaying effect;

2. The cabinet of unit modules adopts to high-temperature spraying technology, the antirust function is greatly improved;

3. Module surface flatness ± 0.2mm, the entire screen has good flatness;

4.High uniformity display color;

5. For improving the service life, PCB is made by wave soldering process with the green oxygen isolation layer, which prevents the line of moisture and oxidation.

6. Service efficiency of the screen switch power supply is increased substantially, which reduces power failure rate;

7. Using fishbone bus line greatly reduces the contact problem;

8. IP65 grade for high performance waterproof and dustproof capability;

9. -25°C – 65°Cworking environment for outdoor display, adapted to the harsh environment.

Specifications:

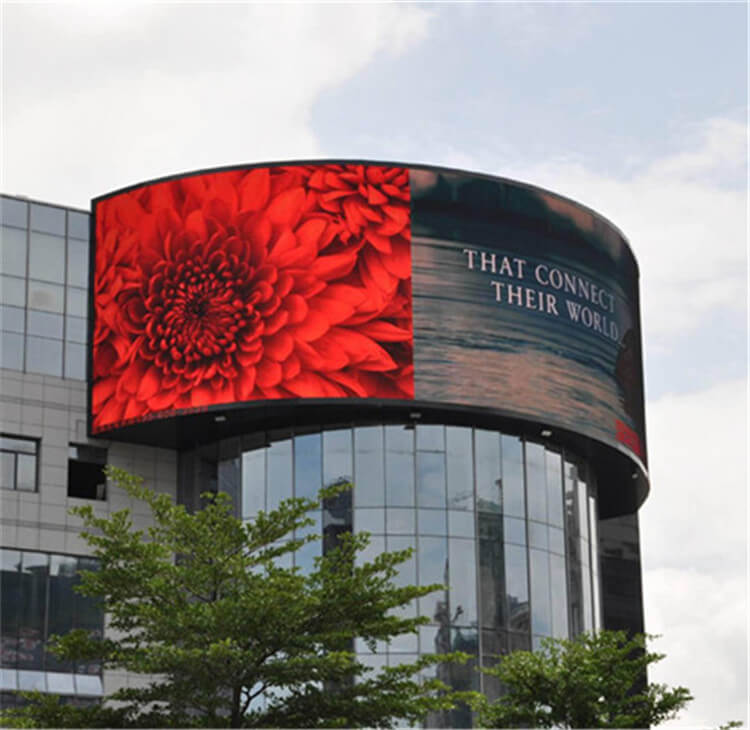

Outdoor Fixed Installed Giant Advertising Media LED Displays
Main	Pitch/mm	P8	P10	P16

	Module size/mm	256x128	160x160	256x256
	Density of pixel/(dots/m2)	15,625	10,000	3,906
	Pixel composition	1R1G1B	1R1G1B	1R1G1B
	Led encapsulation	SMD3535	DIP346	DIP346
	Resolution of module	32x16	16X16	16X16
	Optimum viewing distance	≥6	≥10	≥15
	View angle / °	140H,120V	110 H,60 V	110 H,60 V
	Average power consumption/W/M2	500	450	350
	Max power consumption/W/M2	1000	950	700
	Size of cabinet/mm	1024X768	960X960	1024X1024
	Resolution of cabinet	128X96	96X96	64x64
	Driving method	1/4 scan constant current	1/4 scan constant current	Static constant current
	Refresh rate Hz/S	≥1200	≥1200	≥1200
	Luminance of white balance	≥6000 nits	≥7500 nits	≥7000 nits
	Operation of Environmental Temperature/℃	below 30 to above 50
	IP rating	Front,IP65;Rear,IP43
	Working voltage	110-220 VAC/+/- 10%
	Grey scale/color	displaying colors≥16.7M(synchronized)
	Brightness adjustment	4096 levels of each color(manually),100 levels of each color(automatically)
	Input signal	RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc
	Control system	Linsn / Nova(sending card,receiving cards and Hubs)
	Average of non-failure life	>50,00h
	Life span	>100,000h
	Functionless dot rate	<0.0001
