GIF Animation Picture Display Programmable LED Signs Outdoor RS232 1 / 4 Constant Current- LED Signs-Shenzhen Mega Light Display Limited

GIF Animation Picture Display Programmable LED Signs Outdoor RS232 1 / 4 Constant Current

Product Details:

Place of Origin:	China
Brand Name:	Mega
Certification:	L/C, T/T, Western Union, Paypal, Credit Card, MoneyGram, VISA
Model Number:	P10 DIP RGB LED Sign

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS / 1 Unit
Price:	Negotiation
Packaging Details:	Carton box or Wooden case
Delivery Time:	3-5work days
Payment Terms:	L/C, T/T, Western Union, Paypal, Credit Card, MoneyGram, VISA
Supply Ability:	5,000 pcs per month

Quick Quotation >

Detailed Product Description

Display Color:	1R1G1B / Red / Green / Blue / Yellow	Display Size:	6.3" X 37.7" 6.3" X 50.4" 12.6" X 37.7"
Certificate:	CE RoHS UL Certications	Display Function:	Animation, Graphics, Video, Image, Message, Text
Display Languages:	World Language	Working Voltage:	AC220V±10%50Hz Or AC110±10%60Hz
Lifespan(h):	100,000(h)	Working Environment: Temp:	20°C~+60°C;hum:10%~90% RH
Drive Mode:	1/4 Scan Constant Current
High Light:	programmable led message board , led name badge

Led name badge GIF Animation Picture Display Programmable LED Signs Indoor RS232 1 / 4 Constant Current

Product Description:

1. High brightness , easy to operate and control, all kinds of language and characters can be designed ;
2. Lively animation icons are built-in , 50 or more action effects to choose ;
3. Brightness can be adjusted;
4. Good appearance frame , standard connectors ;
5. Fuction : Time clock format, date , countdown , temperature , humidity ,running message and any other functions can be designed .
6. Screen size can be customized

Technology Specifications:

Name	scrolling led sign
Brightness	≥7500 cd/sqm (outdoor)
Viewing Angle	120° horizontal, 60° vertical
Driver Mode	1/4 constant current
Working Temp	-20°C~+60°C
Working Hum	10%~90% RH
Microchip	Epistar&Silan
LED	p10 DIP
Pixel pitch	10mm
Voltage	AC100~240V
Power Consumption	20W--40W
Control mode	RS232, RS485, LAN, remote, U disk and wireless
Cabinet	IP65 waterproof with cold rolled steel
Composing Parts	LED display, software, data line and power adapter
Multi language	English/Chinese/Greek and more advertising language
Format	Bmp, jpeg, gif picture format, even gif animation display
Brightness adjustment	Manual and automatic by time period
On and off mode	Manual/automatic powered
Auxiliary function 1	Self-contained clock and spare battery not paused once powered off
Auxiliary function 2	Can extend temperature and hygrometer display (need extra charge)
Computer operation request	WIN XP or VISTA, WIN 7 10

Multiple languages and each language can be switched freely.
All programs are transmitted by compression package, and then decompressed on control card.
Supports animation , picture, text, clock, temperature, etc.
Text program edit in any language, any font and any size, free adjust
Transparent text and clock program can be edit to cover photo
More than 45 effects for text and picture, such as: snow fall, mosaic, slide zebra, fan open and etc.,
With multi-program mode. Stores up to 512 programs to the Led screen.
With hierarchical management of programs in menu type so as to keep clear structure and convenient maintenance.
Supports programs played at the appointed period (for example: week, hour, minute )

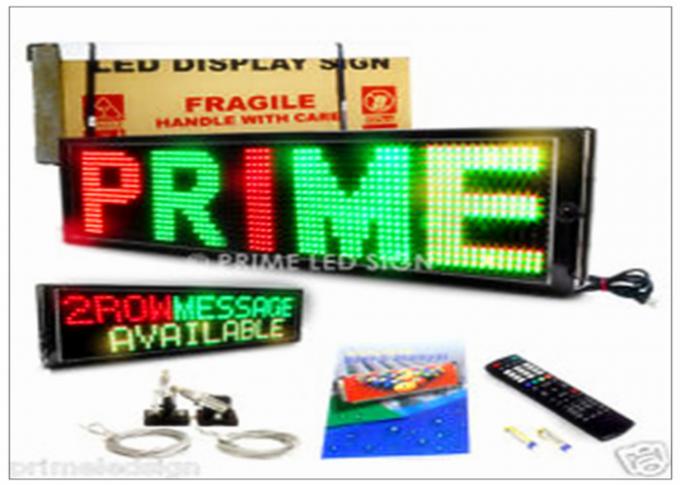

1 x scrolling led sign with metal hooks
1 x 110V or 220v AC plug according to where you ask to ship
1 x USB to RS232 port converter
1 x RS232 cables 1.5m
2 x Mounting rack
2 x Screws
1 x CD with use friendly software and detail manual

GIF Animation Picture Display Programmable LED Signs Indoor RS232 1 / 4 Constant Current
