High Brightness Advertising Display Screens , outdoor fixed led display with SMD2727



Application Site:



Outdoor fixed LED display is widely used in government plazas, recreational plazas, large-scale entertainment plazas etc.



Advertising Display Screens Details

1. P10 mm, 3535 packaging, a large angle of view,power consumption, color uniformity, easy maintenance and operation simple,

2. It can be based on outdoor environment brightness ,humidity,temperature automatic adjustment ,energy-saving, intelligent control.

3. Special design to make outdoor led video screen lower power consumption and energy-saving

4. Mainly used for outdoor high density picture display uses,waterproof and dust proof.High gray and high refresh,meet the camera,camera equipment to shoot demand,3535 table stick package,to meet the large angle of view.

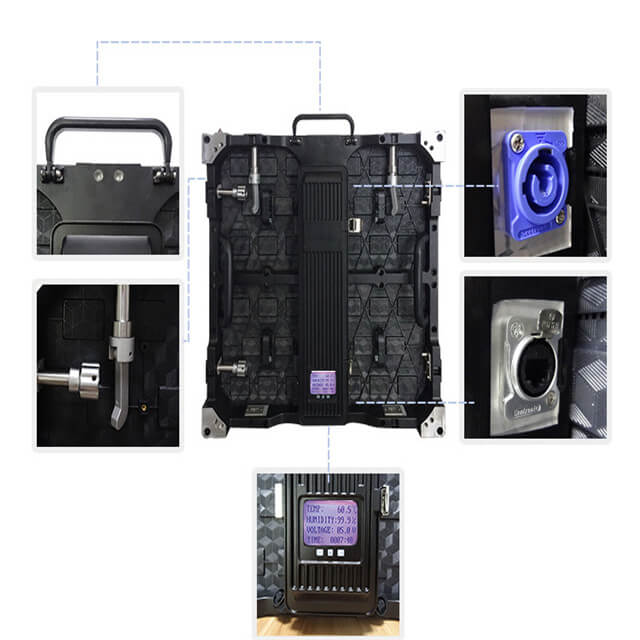

Product features of Advertising Display Screens



1. CNC + Die Casting process cabinets
The flatness of led panel surface is greatly improved by its CNC+Die Casting molding process (precision up to 0.05mm), thus it ensures the full screen’s seamless and precise installation.



2. Super Slim
The thickness is 80mm. This saves your installation space and packing size, it ensures the greatly fast movement and installation.



3. Light Weight
The weight of full panel is only 13KG, can be easily hanging up by one person, with only two person can finish 12sqm led screen installation in 30minutes, which much saves your time and labor cost.



4. Convenient and Fast Installation
We adapted Plug and play designing for this series, the power and signal connector is quite easy and fast for in&out operation; and the signal connection can be in horizontal and vertical ways, it satisfied the rental application in any cases.



Technical parameter of Advertising Display Screens :



Model	P5	P6
PIxel Pitch	5mm	6mm
Pixel Density	40000 pixels/m²	27778 pixels/m²
LED Type	SMD2727	SMD3535
LED Configuration	1R1G1B	1R1G1B
Cabinet Dimension	640*640mm	960*960mm
Cabinet Resolution	128*128pixels	160*160 pixels
Cabinet Weight	13kg	40Kg
Cabinet Material	Aluminum	Aluminum
Ingress Protection	IP65/IP54	IP65/IP54
Brightness	>6000nits	>6500nits
Viewing Angle(H/V)	140°/140°	140°/140°
Driving Method	1/8 Scan	1/6 Scan
Frame Refresh	≥60HZ	≥60HZ
Data Refresh Rate	>3840HZ	>3840HZ





Why Choose Us?

• We are a modern, big and professional manufacturer of LED display screens over 10 years. We have strong R&D department to ensure high end products with user-friendly design.
• We have a wide variety of products for you to choose. All products are strictly tested before put on market.
• We have got CE, FCC and ROHS certificates.We have rich experience in handling all possible problems you may meet when importing from China.
• Our sales are well trained to offer professional advice on your specific projects. Professional engineers are on standby and they can offer guidance, technical support on site as requested.
• We offer 5 years warranty and life time maintenance. Even when warranty time expires , we only charge material costs.



Shipment:



Business term: FOB Shenzhen
Payment term: T/T, usually 30% down payment before production, 70% balance to be paid before delivery, it can also change according to total quantity.
Delivery time: 15~20 days.
Shipping port: Shenzhen, Mainland China
MOQ: LED Screen 1 sqm / LED module 1pcs
Guarantee: 5 years quality guarantee
