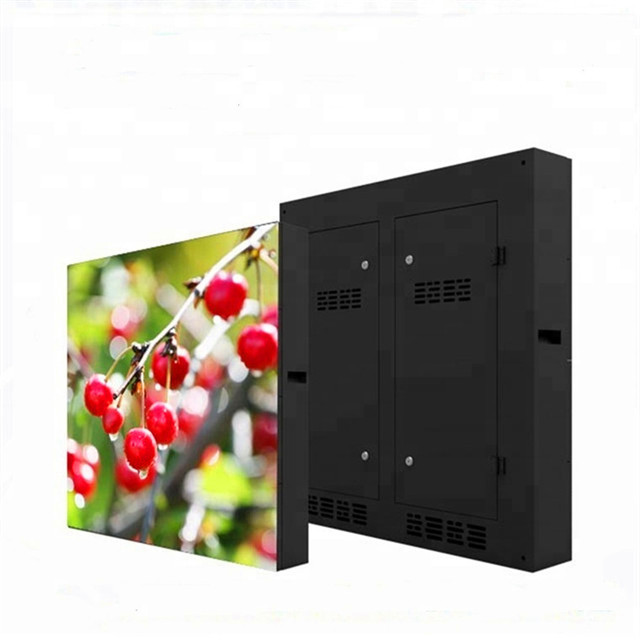

1 / 8 Scan P5 Waterproof Outdoor LED Screens , LED Video Wall Panels 3G Control

Product Details:

Place of Origin: China
Brand Name: Vios
Certification: UL CE ROHS ISO ETL SGS SAA Fcc EMC
Model Number: PH5

Payment & Shipping Terms:

Minimum Order Quantity: 1 Square Meter
Price: Negotiation
Packaging Details: Wooden box or Flight case
Delivery Time: 4-6 work days
Payment Terms: L/C T/T Western Union Paypal Credit Card, MoneyGram, VISA
Supply Ability: 5,000 square meters per month


Detailed Product Description
Led Lamps: SMD2727 Pixel Configuration: RGB 3 In 1
Scan: 1 / 8 Scan Warranty: 5 Years
Resolution Ratio: 32 X 32dots Output Voltage: 5V , 40A
Protection Level: IP67 Pixel Density: 7500 Dots / Mm




large led display panels 1 / 8 Scan P5 Waterproof Outdoor LED Screens , led video wall panels 3G Control




Specifications :



1.Pixel Pitch: 5mm
2.Type: SMD2727
3.Aplication : Outdoor
4.Using : Outdoor Pole LED Screen



Parameters :



The specifications Pole LED Screen
Items Parameter
Product Model P5 Full Color Led Module
Module size 320 x 160mm
resolution ratio 32 x 32dots
Pixel pitch 5.0mm
Pixel density 7500 dots/mm
Pixel configuration RGB 3 in 1
Driving method Constant Current Driving,1/8 scan

Working voltage/

Module maximum power consumption

DC5V,22W
Led Lamps SMD2727
Red Wavelength 620nm
Green Wavelength 520nm
Blue Wavelength 470nm
The specifications of cabinets
Frame rate 60Hz/Second
Refresh rate ≥1000HZ
Display colour 16384
Grey scale 16384
Brightness in White Color (cd/m2) 5000-6300 CD/mm
Brightness adjustment

5000-6300CD,automatic or

manual 1%-100%

Color temperture 3000-13000
Contrast ratio ≥4000:1
Life time ≥100000 hours
Operating temperature sub zero 10℃~55℃
Stock temperature sub zero 10℃~65℃
Operating humidity 10%-90%RH
Average power consumption ≤400W/mm
Viewing Angle 120(Horizontal),120(Vertical)
Best Viewing Distance 5m - 40m
Input Voltage 220V/110V, 50Hz/60Hz
Output Voltage 5V,40A
Protection Level IP67
Operating system XP, WIN7, WIN8,VISTA
Control Mode Synchronization
Input Signal

MPG/MPEG/MPV/MPA/AVI/VCD/SWF/RM/

RA/RMJ/ASF/Composite,etc



Product Features :



1. Fational design, hight brightness for outdoor usage, timing backlight
2. Intelligent light sensitive and temperature control
3. Sunshine-proof, anti-dust, waterproof, easy maintenance
4. Multiple timing, hardware decoding, embedded system
5. Adopting SMD hight brightness lights, wide view angle, 5000:1 high contrast, soft image;
Widely located in street lamp posts.


Application :
It can be used on road, mall stage, high-grade residence district, tourist attractions, 4S stores, hospital entrance and many more outdoor places.

Packaging & Shipping :


1. FedEx/DHL/UPS/TNT , Door-to-Door;
2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!
4. Delivery Time: 5-10 days for samples; 10-15 days for batch goods.



1 / 8 Scan P5 Waterproof Outdoor LED Screens , LED Video Wall Panels 3G Control
