| Model Number: | PH8 | Tube Chip Color: | Full Color |
|---|---|---|---|
| LED Chip: | Nichia | Pixel Pitch: | 8mm |
| Power Supply: | Meanwell | Usage: | Outdoor |
| Input Voltage: | AC110V-240V | Display Module: |
256mm*128mm 320mm*160mm |

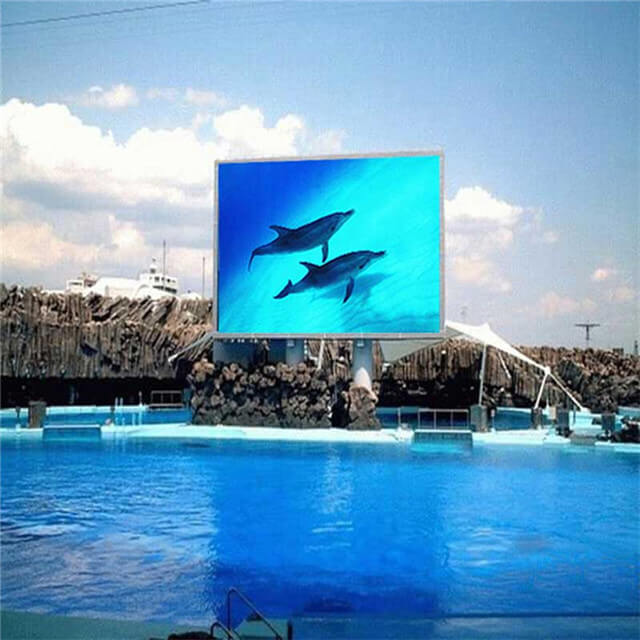

led display screen outdoor
Product information:
Module Parameter:
| Pixel pitch | 8mm |
| Pixel configuration | 1R1G1B |
| LED type | 3-in-1 SMD3535 |
| Module size | 256*128mm |
| Module weight | 219g |
| Module resolution | 32*16 dots |
Cabinet Parameter:
| Cabinet size | 512*512*75mm |
| Cabinet material | Die-casting magnesium alloy |
| Cabinet weight | 13kgs |
| Cabinet resolution | 64:64 dots |
| Ingress protection | Front/Rear IP65/IP54 |
| Pixel density | 15625 dots/m² |
| Brightness | ≥6500 cd/m² |
| Viewing angle | H≥120° V≥120° |
| Min.viewing distance | 10m |
| Max.power consumption | 700W/m² |
| Avg.power consumption | 200 W/m² |
| Working voltage | 110~220VAC±15% |
| Interface | HUB75 |
| Colors | 16.7millon colors |
| Gray level | 14-16bits |
| Frame frequency | ≥60frames/s |
| Refresh rate | ≥600Hz |
| MTBF | ≥10000 hours |
| Lifespan | ≥50000 hours |
| Protective function |
Over-heat/Over-load /Power-down /Power-leakage /Lightning-protection etc. |
| Operating temperature | -10℃ ~ +40℃ |
| Operating humidity | 10-80% no condensation |
| Storage temperature | -20℃ ~ +60℃ |
| Storage humidity | 10-85% no condensation |
Control System Parameter:
| Video signal (with video processor) | AV, S-video,VGA, DVI, YPbPr, HDMI, SDI, DP |
| Color temperature | Adjustable by software |
| Brightness level | 256 levels, automatic adjustment by software |
| Control way | Computer, video-synchronous, real-time, off-line, wireless, internet etc. |
