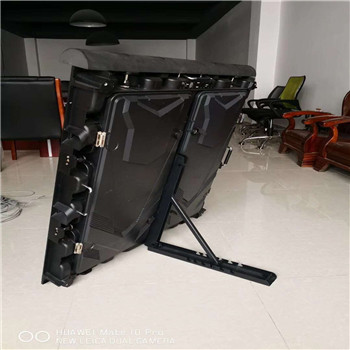

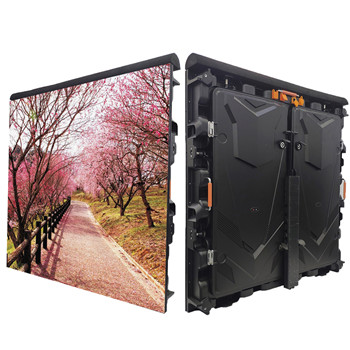

Mega Outdoor P10mm Football Stadium Led Banner Screen Display Outdoor IP65 Aluminum Cabinet



Application:



Outdoor P10mm Football Stadium Led Banner Screen Display Outdoor IP65 Aluminum Cabinet are the most durable design of led stadium perimeter for outdoor use, it's durable, reliable and easy to use, widely applied for all kinds of football, basket ball stadium.



Features and Advantages:



Mechanical

• Quick-service modules. Module / cabinet change time <1 min, without affecting running system – i.e. hot-swappable.
• Mechanism for access gates at several locations (optional), with no signal interruption.
• Mechanical connectors to align the system, and minimise gaps between cabinets.
• Black non-glare finishing on face-plate, and black/dark neutral colours on cabinet.
• Weather-protection to IP-65 (front) and IP-54 (back) standard.

• Rubber louvers front and top to protect cabinets from impact and players from injuries
• Transport casing designed for efficient storage and shipping (for transportable systems).

Content Control / Data Interfacing

• Optional: Individual control of brightness, gamma, colours of every single pixel/ module/cabinet.
• Default images (auto-switch feature) installed and enabled (set to static shared-rotation) in case of total connection loss with server.
• System viewed and operated as one single screen by control software.
• Control signal connection via two redundant feeding points. Fibre optic data cabling from dedicated controller locations to the two return side corners.
• Data ring loop configured; if one connection fails an automatic switch activates data source from the opposite section.

Electrical

• European-voltage system (220-240V, 50Hz).
• Single-PSU-failure tolerant concept.
• Heavy, high flex rubber cabling for cold enviroment outdoor use.
• EMC protection to highest EU standards and regulations.





Parameters



Brightness			nits	6000
Color temperature			deg.k	3200 ~ 9300
Viewing angle - Horizontal			deg.	160(+80/-80)
Viewing angle - Vertical			deg.	160(+80/-80)
Cabinet weight			kg	50

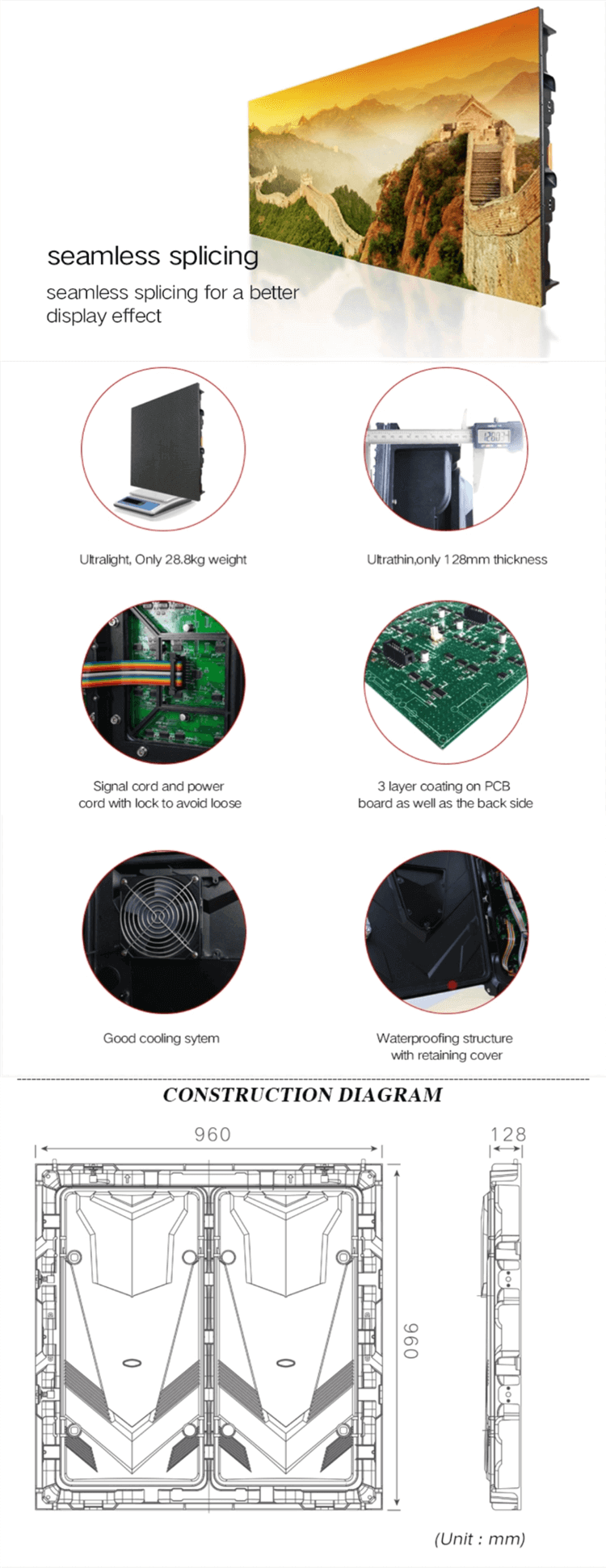

Cabinet width			mm	960
Cabinet height			mm	960
Cabinet depth			mm	150
Cabinet area			sq. m.	0.92
Cabinet material				Cold Steel
Aspect ratio				4:3
Ingress protection (Front/Rear)			IP	IP65/IP54
Operating temperature range			deg. C	- 20 to 50
Operating humidity range			HR	10％ to 90％
Pixel type and configuration			R/G/B	SMD 3in1
Pixel pitch			mm	10
Pixel matrix per cabinet				96x96
Pixels per cabinet				9216
Lines per meter				100
Pixels per sq. meter				10000
LEDs per sq. meter				10000
Recommended minimum viewing distance			m	10
Colours				281trillion
Gray scale			Levels	65536 levels per colour
Brightness control			Levels	100
Digital processing			bit	16
Frame rate			Hertz	60
Display refresh rate			Hertz	1920
Input voltage			VAC	110/240
Input power frequency			Hertz	50/60
Input power (max/avg)			Watts per sq.m	960/330
MTBF			Hours	≥10000
Lifetime (50%Brightness)			Hours	≥100000
Module brightness uniformity				＜5％
Blind spot rate				＜0.0001
Earth leakage current			mA	＜2
Red wavelength			nm	623
Green wavelength			nm	525
Blue wavelength			nm	470
Panel input format (with video processor)				VGA,DVI,SDI,YPbPr(HDTV),Composite,S-Video,TV
Data interconnection				CAT6 cable/Fiber
Operating system				Windows(XP/Vista/7/8/10)
Control distance				Up to 180 meters by CAT6 cable, single fiber up to 15 kilometers.
