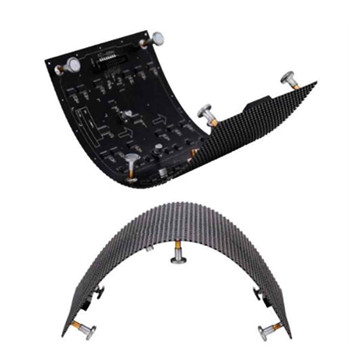

Mega New Design P8mm Soft Flexible LED Display LED Screen LED video wall, P8 Soft LED display Panel.
1:Best Color uniformity.
2:Ultra thin, Ultra Light Weight with any shapes any angles can be designed.
3:Module with small unit and flexbie design to do more complicated shapes for the video show.
4:Easy assemble and disasssemble with soft led modules directly. saving time and labor cost.
5:Easy installtion soft LED module with magnet connection
6:Soft LED module frontal service maintenacne design, easy operation.
7:Lower Weight LED Screen without cabinet metal frame. any LED display structure shape can be designed as you need
8:High stability and high performance using high quality LED material and MBI5124 driving IC to ensure high refrensh rate and performacne
Pixel pitch | 8mm |
Module Size | 256X128 mm |
Model Pixel | 32X16Pixels |
Lattice density | 15625 dots/square meter |
Pixel form | 1R1G1B SMD3528 |
Best viewing distance | 8m~80 m |
Max power consumption | 370W/square meter |
Ave power consumption | 120W/square meter |
Drive mode( Optional) | Constant current 1/8scan |
Control system | DVI card+Full color control card |
Pixel type | Real pixel |
refresh frequency | >=1200HZ |
Horizontal View Angel | > 160 degree |
Gray scale | 16 bit |
Color display | manual adjust |
Brightness | 800-1500 cd/㎡ |
Blind spot rate | <0.00001 |
Waterproof Class | IP43 |
Software | Support window series system |
Working Environment |
Temp:-20Celsius degree-+60Celsius degree
|
