P4.81 Outdoor SMD LED Display full color 1800cd/m2 led video billboard

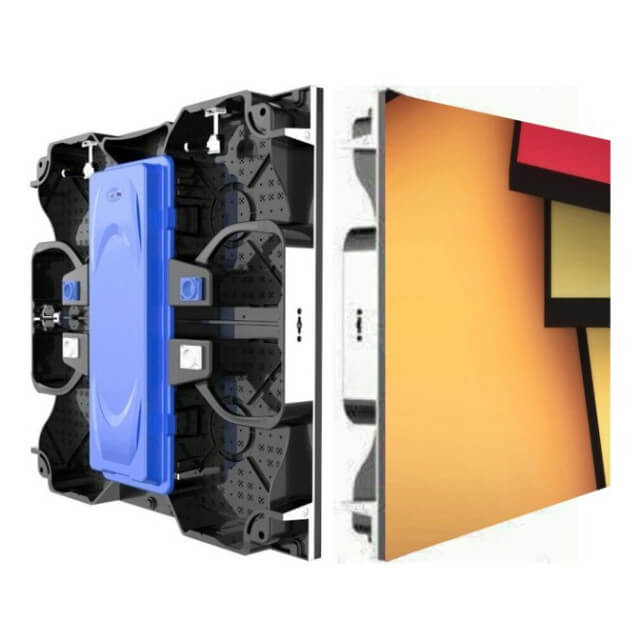

cabinet detail :
Super light and slim: ultrathin(only 9KG per panel)
-Quick and easy assembling and dismantling:
-Cabinet back view energy-saving and environment-protection:
- Hanging Assembly up to 15 layers or 8.64 meter
- High Refresh Rate >2000Hz, High Gray Scale, High Brightness Effective
-Easy rigging system, secure Hanging beams.

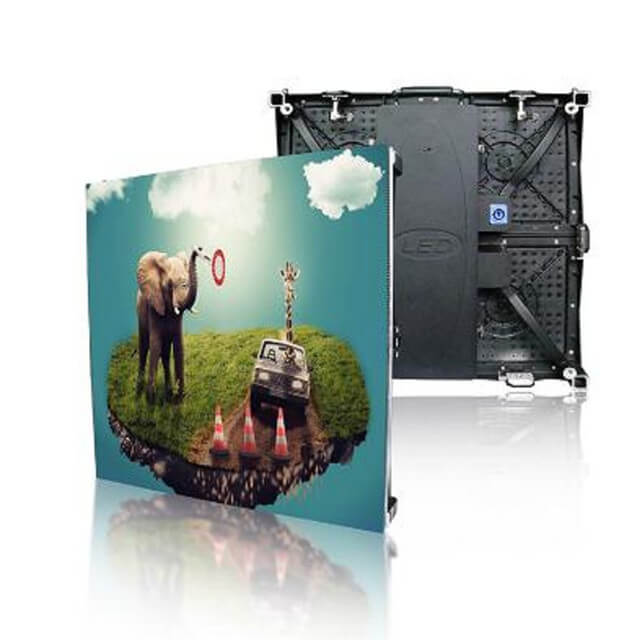

led display panel :
Eastar Dazzle Series is a new full-color LED display designed especially for stage rental,
exhibition rental and fixed installation applications with the features of ultra-thin, ultra-light,
fast assembly, high conformity, excellent color consistency .
feature :
1. Excellent color reproduction, ultimate image quality, high contrast.
2. Modularity & fanless design, Lightweight and slim die casting aluminum casing
3. Excellent grey scale, high contrast.
4. Smart fast side locks makes screen assembly fast and easier.
5. Perfectly suited for cross-rental/touring applications
6. Panel size of 500mmx500mm and 500mmx1000mm for choice
Application filed:
advertising LED displays, stage led screens, mobile led display for mobile media, led video walls outdoor events deocr, led video wall controller for Music concerts, touring& festival, cooperate parties and so on.

P4.81 small pitch led display 500*500mm Indoor die cast aluminum quickly install parameter :

Item	Parameters
Model	Mega4.81S
Pixel Pitch	4.81mm
Pixel Density	43,264dots/m2
LED Configuration	1R,1G,1B
Colors	>16.7 M
Brightness	1,800CD/M2
Gray Scale	>14bit
Refresh Rate	>960hz
Viewing Angle	140°(Horizontal) 140°(Vertical)
Dimension	500mm x1000mm x 75mm
LED configuration	SMD3528
Weight	13.5kg
Protection Level	IP43
Input Voltage	AC 96V~264V+/-10%
Source	DVI, RGB, CVBS, HDMI, YUV, SDI etc
Temperature	-20°C ~ +40°C (operating) -20°C ~ +60°C (storage)
Humidity	10% ~ 90% (operating) 10% ~ 85% (storage)
Life Span	50,000 hrs

Trade terms :	1. Payment:T/T,30% deposits before production,70% balance to be paid before delivery .
	2. Shipping freight are quoted under your requests .
	3. Shipping port: Shenzhen,mainland China .
	4. MOQ:1SQM .
	5.Package : Wooden packing and flight packing .
About Technology :	1. We provide the technology training for free, which contains the operation training and maintenance training at our factory
	2. We will send our engineers to your country by negotiation.
	3. We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
	4. We will send our engineers to your place if we are expected after our negotiation.

TAG: advertising led screens
